Synopsis:
A compound object is an instance of a type that inherits from, and/or aggregates, instances of other types.
When a class aggregates an instance of another class, it is responsible for constructing the aggregated instance
by a call to the new operator.
When a class inherites from a base, it inherits the base's methods, except for constructors and destructor.
The derived class may choose to override virtual methods of the base, and must define any abstract methods of the base.
It is appropriate to use inherited non-virtual methods of the base as appropriate.

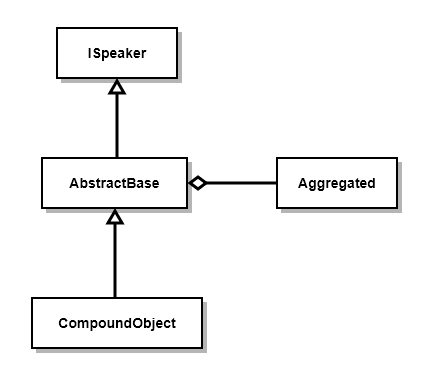

Compound Object Class Diagram
Code in File CompoundObjects.cs
/////////////////////////////////////////////////////////////////////
// CompoundObjects.cs - demonstrate compound object relationships //
// //
// Jim Fawcett, CSE681 - Software Modeling and Analysis, Fall 2017 //
/////////////////////////////////////////////////////////////////////
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace CompoundCSharpObjects
{
///////////////////////////////////////////////////////////////////
// ISpeaker interface
interface ISpeaker
{
void say();
string name { get; set; }
}
///////////////////////////////////////////////////////////////////
// Aggregated class
// - owned by AbstractBase
public class Aggregated : ISpeaker
{
public Aggregated()
{
Console.Write("\n construction of Aggregated instance");
}
~Aggregated()
{
Console.Write("\n Aggregated instance dying");
}
public string name { get; set; } = "aggregated instance";
public void say()
{
Console.Write("\n Hi, I'm {0}, of type {1}", name, this.GetType().Name);
}
}
///////////////////////////////////////////////////////////////////
// AbstractBase
// - base class for CompoundObject
public abstract class AbstractBase : ISpeaker
{
public AbstractBase()
{
Console.Write("\n construction of AbstractBase instance");
}
~AbstractBase()
{
Console.Write("\n AbstractBase instance dying");
}
public string name { get; set; } = "abstract base instance";
void speak()
{
Console.Write("\n Hi there, ");
}
protected virtual void phrase()
{
Console.Write("\n AbstractBase phrase");
}
public void say()
{
speak();
Console.Write("I'm {0}, of type {1}", name, typeof(AbstractBase).Name);
((AbstractBase)this).phrase(); // this dispatches to the derived class method
agg.say();
}
private Aggregated agg = new Aggregated();
}
///////////////////////////////////////////////////////////////////
// CompoundObject class
// - implements AbstractBase and ISpeaker
public class CompoundObject : AbstractBase
{
public CompoundObject()
{
Console.Write("\n construction of CompoundObject instance");
}
~CompoundObject()
{
Console.Write("\n CompoundObject instance dying");
}
public string name { get; set; } = "compound object instance";
void speak()
{
Console.Write("\n Well, hello there, ");
}
protected override void phrase()
{
Console.Write("\n CompoundObject phrase");
}
public void say()
{
speak();
Console.Write("I'm {0}, of type {1}", name, this.GetType().Name);
phrase();
base.say();
}
}
///////////////////////////////////////////////////////////////////
// TestCompoundObjects class
class TestCompoundObjects
{
static void Main(string[] args)
{
Console.Write("\n Demonstrate Compound Object Relationships");
Console.Write("\n ===========================================");
CompoundObject co = new CompoundObject();
co.say();
Console.Write("\n\n");
}
}
}
Output
Demonstrate Compound Object Relationships =========================================== construction of Aggregated instance construction of AbstractBase instance construction of CompoundObject instance Well, hello there, I'm compound object instance, of type CompoundObject CompoundObject phrase Hi there, I'm abstract base instance, of type AbstractBase CompoundObject phrase Hi, I'm aggregated instance, of type Aggregated Aggregated instance dying CompoundObject instance dying AbstractBase instance dyingPress any key to continue . . .
