// CsGraph.cs - Generic edge, node and directed graph classes //
// ver 1.1 //
// Jim Fawcett, CSE681 - Software Modeling and Analysis, Spring 2018 //
///////////////////////////////////////////////////////////////////////////
/*
* Maintenance History:
* --------------------
* ver 1.1 : 23 Aug 2018
* - changed definition of CsNode<V,E>
* - changed logic and return type of CsGraph<V,E>::walk
* ver 1,0 : 18 Aug 2018
* - first release
*/
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
namespace CsGraph
{
/////////////////////////////////////////////////////////////////////////
// CsNode<V,E> class
public class Edge<V, E> // holds child node and instance of edge type E
{
public CsNode<V, E> targetNode { get; set; } = null;
public E edgeValue { get; set; }
public Edge(CsNode<V,E> node, E value)
{
targetNode = node;
edgeValue = value;
}
};
public class CsNode<V,E>
{
public V nodeValue { get; set; }
public string name { get; set; }
public List<Edge<V, E>> children { get; set; }
public bool visited { get; set; }
//----< construct a named node >---------------------------------------
public CsNode(string nodeName)
{
name = nodeName;
children = new List<Edge<V,E>>();
visited = false;
}
//----< add child vertex and its associated edge value to vertex >-----
public void addChild(CsNode<V,E> childNode, E edgeVal)
{
children.Add(new Edge<V, E>(childNode, edgeVal));
}
//----< find the next unvisited child >--------------------------------
public Edge<V, E> getNextUnmarkedChild()
{
foreach (Edge<V, E> child in children)
{
if (!child.targetNode.visited)
{
child.targetNode.visited = true;
return child;
}
}
return null;
}
//----< has unvisited child? >-----------------------------------
public bool hasUnmarkedChild()
{
foreach (Edge<V, E> child in children)
{
if (!child.targetNode.visited)
{
return true;
}
}
return false;
}
public void unmark()
{
visited = false;
}
public override string ToString()
{
return name;
}
}
/////////////////////////////////////////////////////////////////////////
// Operation<V,E> class
class Operation<V, E>
{
//----< graph.walk() calls this on every node >------------------------
virtual public bool doNodeOp(CsNode<V,E> node)
{
Console.Write("\n {0}", node.ToString());
return true;
}
//----< graph calls this on every child visitation >-------------------
virtual public bool doEdgeOp(E edgeVal)
{
Console.Write(" {0}", edgeVal.ToString());
return true;
}
}
/////////////////////////////////////////////////////////////////////////
// CsGraph<V,E> class
class CsGraph<V,E>
{
public CsNode<V, E> startNode { get; set; }
public string name { get; set; }
public bool showBackTrack { get; set; } = false;
private List<CsNode<V, E>> adjList { get; set; } // node adjacency list
private Operation<V, E> gop = null;
//----< construct a named graph >--------------------------------------
public CsGraph(string graphName)
{
name = graphName;
adjList = new List<CsNode<V, E>>();
gop = new Operation<V, E>();
startNode = null;
}
//----< register an Operation with the graph >-------------------------
public Operation<V, E> setOperation(Operation<V, E> newOp)
{
Operation<V, E> temp = gop;
gop = newOp;
return temp;
}
//----< add vertex to graph adjacency list >---------------------------
public void addNode(CsNode<V,E> node)
{
adjList.Add(node);
}
//----< clear visitation marks to prepare for next walk >--------------
public void clearMarks()
{
foreach (CsNode<V, E> node in adjList)
node.unmark();
}
//----< depth first search from startNode >----------------------------
public void walk()
{
if(adjList.Count == 0)
{
Console.Write("\n no nodes in graph");
return;
}
if(startNode == null)
{
Console.Write("\n no starting node defined");
return;
}
if(gop == null)
{
Console.Write("\n no node or edge operation defined");
return;
}
this.walk(startNode);
foreach (CsNode<V, E> node in adjList)
if (!node.visited)
walk(node);
foreach (CsNode<V, E> node in adjList)
node.unmark();
return;
}
//----< depth first search from specific node >------------------------
public void walk(CsNode<V,E> node)
{
// process this node
gop.doNodeOp(node);
node.visited = true;
// visit children
do
{
Edge<V,E> childEdge = node.getNextUnmarkedChild();
if (childEdge == null)
{
return;
}
else
{
gop.doEdgeOp(childEdge.edgeValue);
walk(childEdge.targetNode);
if (node.hasUnmarkedChild() || showBackTrack)
{ // popped back to predecessor node
gop.doNodeOp(node); // more edges to visit so announce
} // location and next edge
}
} while (true);
}
}
/////////////////////////////////////////////////////////////////////////
// Test class
class demoOperation : Operation<string, string>
{
override public bool doNodeOp(CsNode<string, string> node)
{
Console.Write("\n -- {0}", node.name);
return true;
}
}
class Test
{
static void Main(string[] args)
{
Console.Write("\n Testing CsGraph class");
Console.Write("\n =======================");

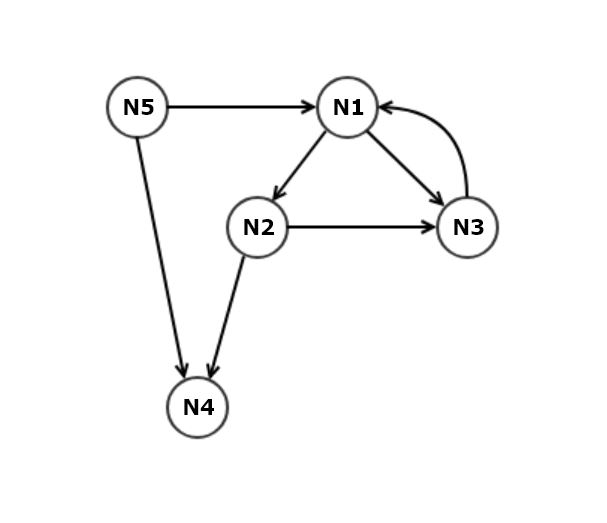

CsNode<string, string> node1 = new CsNode<string, string>("node1");
CsNode<string, string> node2 = new CsNode<string, string>("node2");
CsNode<string, string> node3 = new CsNode<string, string>("node3");
CsNode<string, string> node4 = new CsNode<string, string>("node4");
CsNode<string, string> node5 = new CsNode<string, string>("node5");
node1.addChild(node2, "edge12");
node1.addChild(node3, "edge13");
node2.addChild(node3, "edge23");
node2.addChild(node4, "edge24");
node3.addChild(node1, "edge31");
node5.addChild(node1, "edge51");
node5.addChild(node4, "edge54");
CsGraph<string,string> graph = new CsGraph<string,string>("Fred");
graph.addNode(node1);
graph.addNode(node2);
graph.addNode(node3);
graph.addNode(node4);
graph.addNode(node5);
graph.startNode = node1;
Console.Write("\n\n starting walk at {0}", graph.startNode.name);
Console.Write("\n not showing backtracks");
graph.walk();
graph.startNode = node2;
Console.Write("\n\n starting walk at {0}", graph.startNode.name);
graph.showBackTrack = true;
Console.Write("\n show backtracks");
graph.setOperation(new demoOperation());
graph.walk();
Console.Write("\n\n");
}
}
}
