Introduction:
Message-Passing Communication (MPC) establishes a channel between processes to communciate by sending messages. A well known example is the communication between browsers and web servers sending request and reply messages using the HTTP protocol. The simplest of these MPC systems is the client server model where a client sends a request message to a specified server, the server processes the message, and sends back an appropriate reply message. This request / reply sequence constitutes a talk protocol. The client initiates all message exchanges and the server simply responds. It has the benefit of a very simple message exchange sequence, but has the liability that the client must wait for a response.Channels:
Another style is based on one-way message channels between a sender on one peer and a receiver on another, as shown in the diagram below. Each of these "peers" might be located on seperate machines or in seperate processes in the same machine.

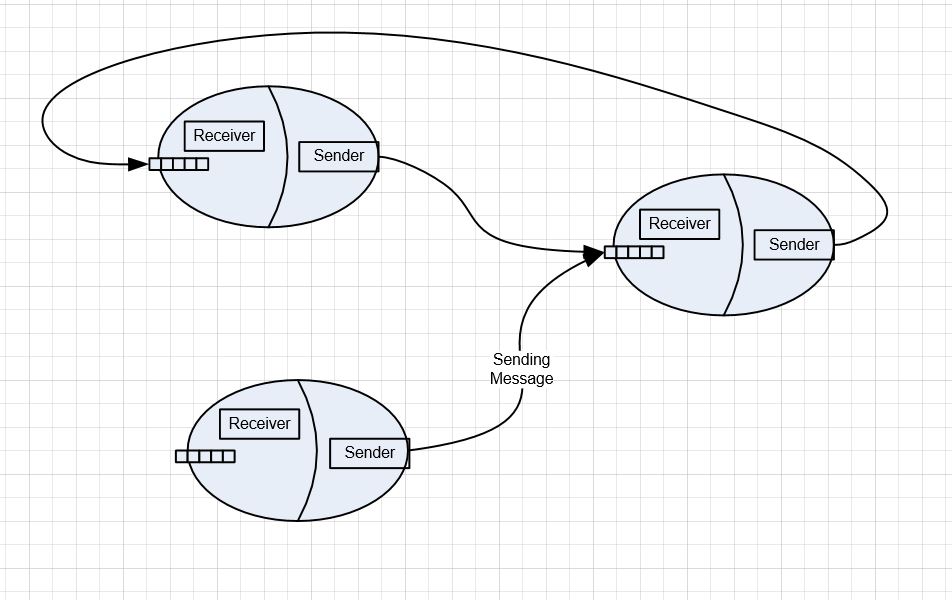

Peer-To-Peer Communication
Note that Communication Peers may not be functionally identical.
Note that Communication Peers may not be functionally identical.
End Points:
Each receiver has a listener assigned to a specific port, and we describe the ip-address and port number as an endpoint which we represent as an attribute pair ip : port. The endpoint is an address for a particular service provided by a peer. Note that the diagram emphasizes that the communication endpoints are identical, even though the processing that is provided at a particular endpoint may be quite different from that at another endpoint. The communication endpoints are peers, but the machines are not.Talk Protocol:
The resulting talk protocol is very simple because messages only flow one way in each channel. A sender can send to an endpoint at any time, and a receiver can handle enqueued messages at any time. This makes a very flexible and fluid style of communication. The sender does not wait for a response. After sending a message it may send messages to other peers or do other processing. Eventually the receiver of the message may elect to send back a reply message to the sender, but is not required to do so. The exchange is very like threads of email that we all use.Messages:
Messages contain a destination address so that the sender can connect to that endpoint. If the reciever will eventually reply, then, since there will be multiple senders, the message needs a return address. The message also needs to define the requested operation and provide any parameters needed to carry out the requested action.

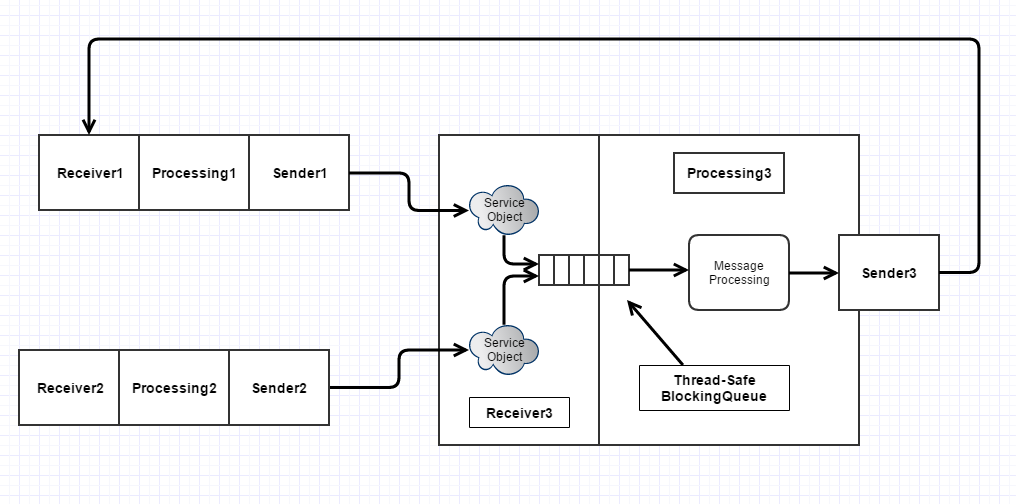

WCF Message-Passing Communication
The Receivers are wrappers around a WCF Service.
Senders are wrappers around a proxy for the WCF Service.
The Receivers are wrappers around a WCF Service.
Senders are wrappers around a proxy for the WCF Service.
WCF Communication:
If we use a communcation framework like Windows Communication Foundation (WCF), then each message will consist of a Simple Object Access Protocol (SOAP) wrapper around a serialized instance of a data class that defines the request, the to and from addresses, and any parameters needed to execute the request. The diagram at the right shows one possible design for peer-to-peer communication using WCF. Each Receiver instantiates a WCF service. The service objects simply enqueue incoming messages, for processing by the dequeueing thread. If a reply is appropriate the message processor builds a reply message, using the incoming message return address and passes it to its sender, usually with a PostMessage(msg) invocation.Socket Communication:
If we craft our own communication infrastructure with sockets, we're likely to use HTTP style messages. The HTTP protocol uses messages that contain a header, consisting of text lines, where each line is an attribute pair. The message header is terminated with a blank line. If the message contains a content-length:483 attribute, that implies that the header is followed with a body containing 483 bytes of data, which need not be text.

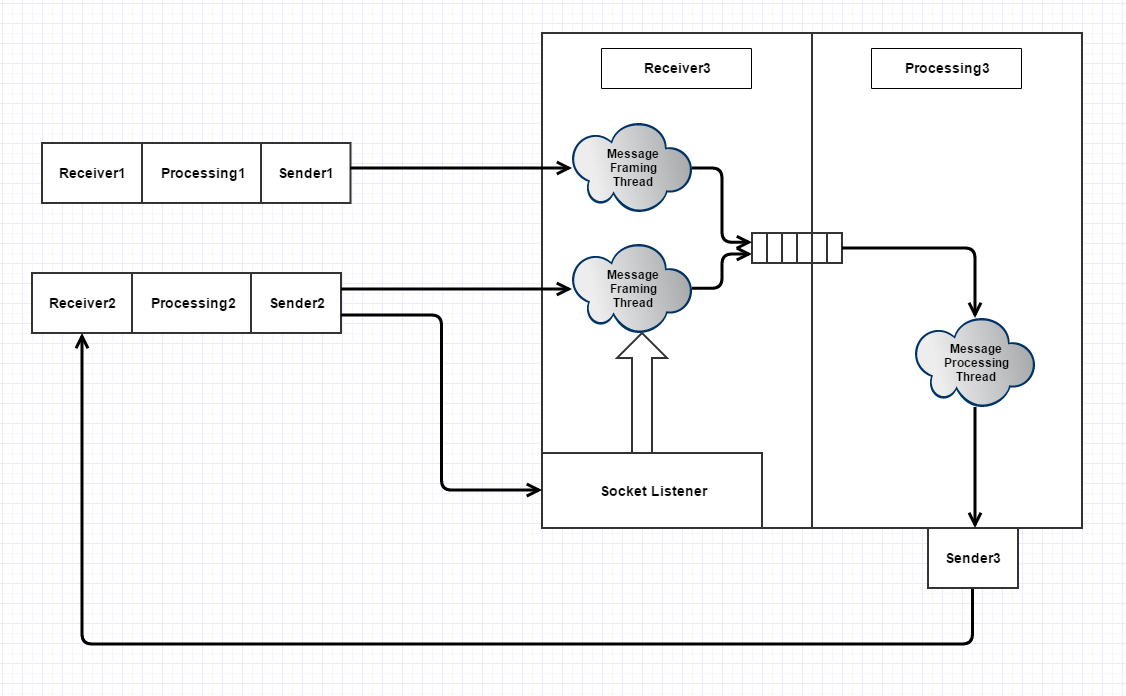

Socket Message-Passing Communication
Receivers use Socket listeners that wait for connections.
Senders use a connection socket.
Receivers use Socket listeners that wait for connections.
Senders use a connection socket.
